Tutorial - An Agentic AI App with Streaming

May 5, 2025

We'd like to show you just how easy it is to build an agentic chatbot using BAML! In this tutorial, we'll go from zero to working app, with explanations that you can follow step by step.

First, a look at the final product we will produce:

This chatbot helps users build and manage Todo lists using natural language. We will build an agentic LLM that decides what actions should be taken to modify the Todo list, and then write business logic in TypeScript to apply those changes to the page.

If you reach the end of the tutorial, you will have a working app, and understanding of the following concepts:

  • LLM API Design with BAML types functions
  • Tool use in BAML
  • How to use React hooks derived from BAML code
  • How to manage React state with streaming updates

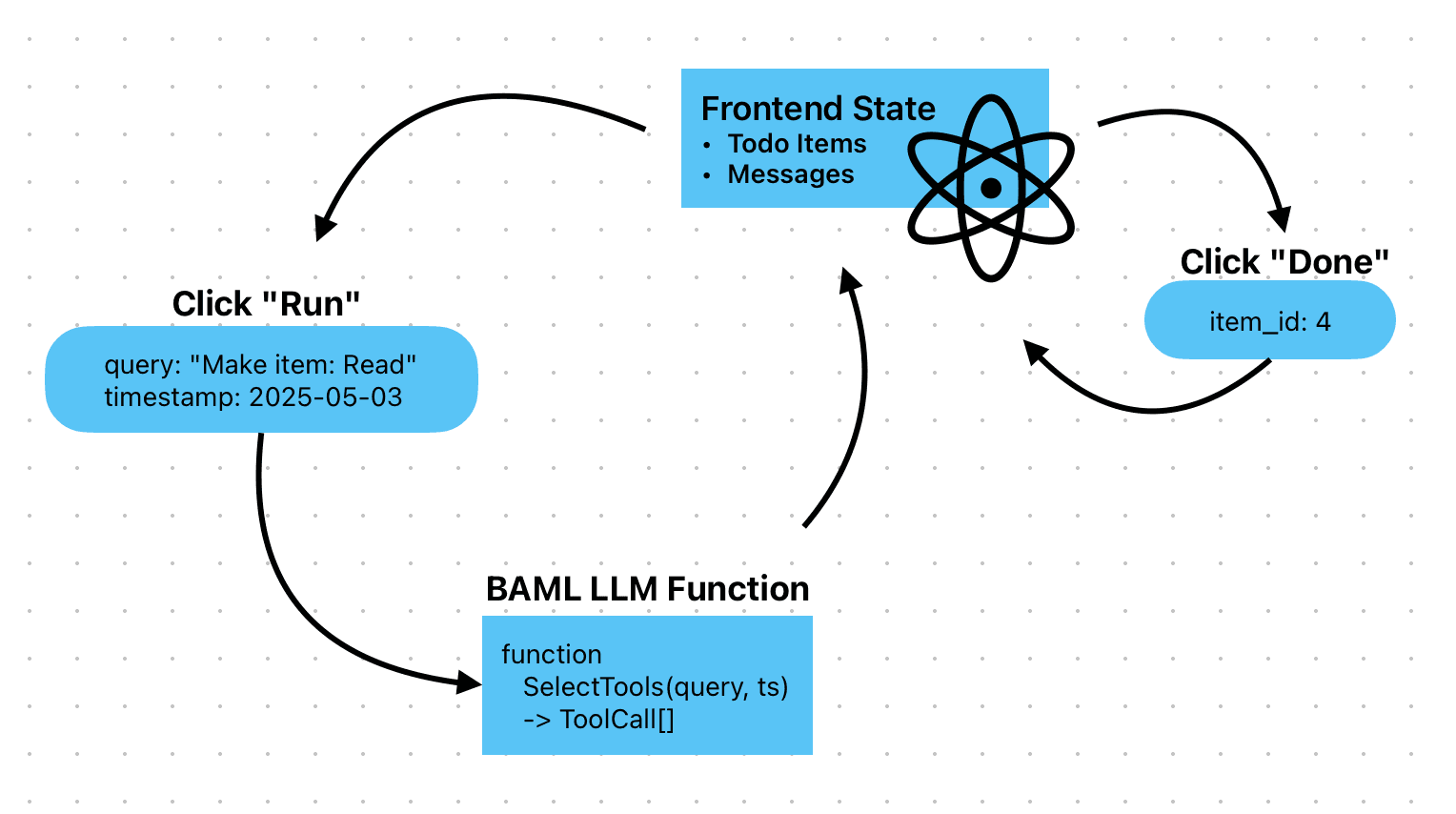

System Architecture

Our app will be built around React frontend with a state that can be updated through both direct user interactions (e.g. Clicks on checkboxes) and tool calls determined by an LLM.

React holds the central state. Clicks and LLM calls update the state.

Streaming UI

The tool calls we will use to update the Todo list are relatively simple, but a good UI experience requires a couple subtle issues to be resolved around streaming.

When the user enters a query, our BAML LLM function will determine which tool calls to issue to satisfy the query, it it will return them in a list. Our streaming should look like this:

  • Stream the invidivual tool calls from the list (so we process each tool call as soon as it's ready, rather than waiting for the full list).
  • Do not stream the contents of each tool call - each tool call should be presented to our application exactly once, because it is a single instruction for updating the UI (e.g., Add an Item, or Update An Item).
  • Make one exception to the above rule: the tool call that sends messages to the user should have its contents streamed, so that the message itself is streamed in to the UI.

This is exactly the kind of fine-grained behavior that Semantic Streaming lets you specify. We will see how to use Semantic Streaming in your Todo app when we craft your BAML LLM function.

Dev environment

We reccommend using VSCode or Cursor, and getting the BAML extension from the Extensions tab. We'll be building a NextJS app, so you need to have nodejs installed, which ships two utilities we will use: npm and npx.

Scaffolding

We'll set up the basic structure of the project first, following the QuickStart Guide for a new NextJS app. The only prerequisite is that you have nodejs installed.

npx create-next-app@latest todo-llm
cd todo-llm
npm install @boundaryml/baml @boundaryml/baml-nextjs-plugin
npx baml-cli init
npm baml-cli generate

create-next-app will ask you several questions about your preferred typechecker, linter and build system. We recommend using TypeScript and Tailwind. We will say No to Turbopack because it doesn't yet work with BAML react hooks (which we'll explain later). The other defaults are fine.

Your directory should now look approximately like this. baml_src contains the BAML source code you write to define your LLM functions. baml_client contains typescript code automatically generated from your baml_src code, for connecting your app to your LLM functions. React components live under /src.

[nix-shell:~/code/todo-llm5]$ tree -L 2
.
├── README.md
├── baml_src
│   ├── clients.baml
│   ├── generators.baml
│   └── resume.baml
├── baml_client
│   ├── react
   |   └── hooks.ts
│   ├── types.ts
│   └── partial_types.svg
├── next.config.ts
├── package.json
├── src
│   └── app
       ├── page.tsx
       ├── globals.css
│       └── layout.svg
└── tsconfig.json

We need to update the file next.config.ts to make NextJS aware of the BAML integration.

// next.config.ts
import { withBaml } from '@boundaryml/baml-nextjs-plugin';
import type { NextConfig } from 'next';
const nextConfig: NextConfig = {
  // ... existing config
};

export default withBaml()(nextConfig);

Now we will fix our baml_src/generators.baml file, telling it to generate React hooks for us:

generator target {
    // vv Change this from "typescript" to "typescript/react"
    output_type "typescript/react"
    output_dir "../"
    version "0.86.0"
    default_client_mode async
}

Let's write some BAML!

Now it's time to design our LLM Function. Our goal is to write a function that takes a user query and produces a list of changes to make to the UI. We will build the pieces one at at time, then assemble them into a final file at the end of this section.

Here are some example queries we expect from the user:

  • "Please add a todo item: Go for a Run"
  • "Add the 'Personal' tag to all the items about socializing"
  • "I finished my homework 20 minutes ago"
  • "Please summarize the remaining items, and make new items if any unfinished items need to be broken down into smaller steps"

Input Type

To satisfy the queries above, the LLM needs to know three things:

  1. The query itself.
  2. The time the query was created (to make sense of phrases like "yesterday").
  3. The current state of the Todo list.

Create a new file called baml_src/todo.baml. We'll start writing the inputs to our LLM function.

A class called Query will hold the user's message and the timestamp at which it was sent.

class Query {
  message string
  date_time int @description("Timestamp of the message - seconds since UNIX Epoch")
}

A class called State will hold the "current" list of Todo items. "Current" is a relevant notion for our frontend. The LLM will not remember anything between calls, so it's not exactly current from the LLM's perspective. When we send the LLM a request, State will serve as the LLM's memory.

class State {
  todo_list TodoList
}

class TodoList {
  items TodoItem[]
}

class TodoItem {
  id string
  title string
  created_at int @description("Timestamp in seconds since UNIX Epoch")
  completed_at int? @description("Timestamp in seconds since UNIX Epoch")
  tags Tag[]
}

enum Tag {
  Work
  Personal
  Errand
}
Aside

It may not be necessary to warp TodoList and State in their own structs like this, but we will do it in this example because these would be natural places to add more fields for different features later.

Checkpoint!

Check that everything is alright by running npx baml-cli generate. If you see errors that you don't know how to fix, drop by our Discord where we (and our enthusiastic community) are excited to help!

Output Type

Our function should take the inputs we created above and produce a list of actions for updating the State. In other words, a list of Tool calls.

// A Tool call for adding a new item.
// It doesn't include an ID because the frontend will be responsible
// for generating the ID.
class AddItem {
  type "add_item"
  title string
  tags Tag[]

  // The following line tell the BAML runtime that `AddItem` is "atomic".
  // During streaming it will be delivered all at once, not streamed bit
  // by bit.
  @@stream.done
}

// A Tool call for adjusting an existing item.
class AdjustItem {
  type "adjust_item"
  item_id string
  title string?
  completed_at int?
  tags Tag[]?

  // This tool, too, should not be provided to the client in pieces.
  @@stream.done
}

// A tool call to send text to the user.
// This tool has no @@stream.done attribute, because we do want it
// to be streamed in.
class MessageToUser {
  type "message_to_user"

  // @stream.with_state will cause the `message` field to be wrapped
  // in an object that reports if streaming is in progress or done,
  // when using the type in the React client.
  message string @stream.not_null @stream.with_state
}

// Collect all the tools together into a union for convenience.
type Tool = AddItem | AdjustItem | MessageToUser

There are a few things to point out here.

  1. @@stream.done comes from SemanticStreaming. It indicates that this class will never reach your React code in partial form, you will always recive it as a completed whole.
  2. The class MessageToUser uses @stream.not_null and @stream.with_state on its message field. These mean that your app will always receive MessageToUser with some not-null message value, and that the message field will be wrapped with metadata about whether the field is complete or still streaming. We used this annotation here to help our UI know when a message is finished.
  3. The AddItem tool call does not specify an ID. We made this choice so that our React app, not the LLM, is in charge of assigning IDs to new items.

The LLM Function

We are finally ready to write our LLM function.

function SelectTools(state: State, query: Query) -> Tool[] {
  client "openai/gpt-4o"
  prompt #"
    You are a helpful assistant that can help with the user's todo list.
    You can adjust an item, add an item, or send the user a message.
    Here is the state:
    {{ state }}

    When the user specifies relative times, use the current time and their
    time delta to determine an absolute time. Never return a value like
    "1745877191 - 7200".  Instead, return a value like "1745870191".

    When updating an item, you may be tempted to only fill out the fields
    that need chaning. But it's important instead to fill out all the fields.
    If you don't want to update a field, set it to the existing value.

    If the user mentions finishing an item that isn't on the list, inform them
    that it's not on the list.

    {{ ctx.output_format }}

    {{ _.role('user')}}
    User query: {{ query.message }}
    That message was sent at {{ query.date_time }}
  "#
}

This function wraps our prompt up as a function, parameterized by the current state of the app and the user's query. When we call this function, we will supply these parameters, the BAML runtime will splice them into the prompt and send the request to GPT-4o, then parse the LLM's response into our return type: Tool[] (a list of Tools).

Tests

We're not vibe coding here, we're writing a system that should act more like a web app than an LLM demo project, and we need some tests.

test NewFirstItem {
  functions [SelectTools]
  args {
    state {
        todo_list {
            items []
        }
    }
    query {
        message "Add 'Take otu the trash' to Errands"
        date_time 1719225600
    }
  }
  @@assert( {{ this|length == 1 }})
  @@assert( {{ this[0].type == "add_item" }} )
}

test NewAdvice {
  functions [SelectTools]
  args {
    state {
        todo_list {
            items []
        }
    }
    query {
        message "Help"
        date_time 1719225600
    }
  }
  @@assert( {{ this[0].type == "message_to_user" }} )
}

test CompleteSecondItem {
  functions [SelectTools]
  args {
    state {
      todo_list {
        items [
          {
            id 1
            title "Take out the trash"
            created_at 1719225600
            completed_at null
            deleted false
            tags [Errand]
          },
          {
            id 2
            title "Buy groceries"
            created_at 1719225600
            completed_at null
            deleted false
            tags [Errand]
          }
        ]
      }
    }
    query {
      message "I bought the groceries 5 hours ago"
      date_time 1719225600
    }
  }
  @@assert( {{ this|length == 1 }} )
  @@assert( {{ this[0].type == "adjust_item" }} )
}

The Full BAML File

Here, we have collected the entire contents of todo.baml into a BAML file and included it in a playground. Try running the tests and verifying that the LLM generates the expected tool calls from each test query.

Loading preview...
No tests running
Checkpoint

Make sure npx baml-cli generate still works, and that, when you save the BAML file, you see the nofication: "BAML client successfully generated!".

Also, click the Run Test buttons in the playground. Experiment with the prompt and see which parts are critical to the model performing correctly. What happens if you omit {{ ctx.output_format }}? What happens if you delete the paragraphh forbidding timestamps like "1745877191 - 7200"? Experimenting with the prompt and observing the effects on your tests is a core part of the BAML development process. If you get good at it, you can get very reliable results from your LLMs.

Building the Web App

As you have been writing your todo.baml file, the VSCode extension has been watching and reflecting the changes into another directory called baml_client. baml_client is accessible from your React code.

Let's start with the simplest possible use of your generated BAML function, SelectTools.

Aside

At this point, you will need your API key available in the environment, in order to make LLM calls.

export OPENAI_API_KEY=sk-proj-*************

Start the development server so you can watch your changes reflected in the app.

npm run dev

In a web browser, navigate to localhost:3000. You should see the NextJS started template after a moment of compiling.

Components

We'll start by importing some basic components from shadcn/ui.

pnpm dlx shadcn@latest init
pnpm dlx shadcn@latest add badge
pnpm dlx shadcn@latest add button
pnpm dlx shadcn@latest add checkbox
pnpm dlx shadcn@latest add input
pnpm dlx shadcn@latest add label
pnpm dlx shadcn@latest add textarea
pnpm dlx shadcn@latest add tooltip

A/V Test

We will add a component that simply checks that LLM calls are working, before we build a real UI. Create a file in src/components/test-llm.tsx.

Even this isn't the real code we will use, it's small and simple, so we'll use code comments to introduce some of the important concepts.

'use client'

import { useState } from "react"
import { useSelectTools } from "../../baml_client/react/hooks"
import { State, Query } from "../../baml_client/types"
import { Input } from "@/components/ui/input"


function TestLLM() {
    // A standard `useState` hook will track the value of our Input element.
    const [queryText, setQueryText] = useState("")

    // `useSelectTool` is generated from our BAML code.
    const hook = useSelectTools({
        // Specify to the hook that we want streaming.
        stream: true,
        // Capture every stream event and log it to console for debugging.
        onStreamData: (chunk) => {
            console.log(chunk)
        }
    })

    // Make a placeholder value for calling the LLM function.
    const state: State = {
        todo_list: {
            items: []
        }
    }
    // Make a real `Query` object. (The `Query` TypeScript type was generated
    // from our BAML `Query` class).
    const query: Query = {
        message: queryText,
        date_time: Math.floor(Date.now() / 1000.0)
    }

    return (
        <div>
            <input
               type="text"
               className="border-2 border-gray-300 rounded-md p-2"
               value={queryText}
               onChange={(e) => setQueryText(e.target.value)} />

            {* When the button is clicked, call the LLM function using
               the hook's `mutate()` method.
            *}
            <button onClick={() => hook.mutate(state, query)}>
              Create Todo
            </button>

            <div>
                <pre>
                    {* hook.streamData is a reactive value containing the
                       current LLM result *}
                    {JSON.stringify(hook.streamData, null, 2)}
                </pre>
            </div>
        </div>
    )
}

export { TestLLM }

Let's analyze this code to understand the basics of BAML's integration with React.

    1. useSelectTools is a react hook generated from our BAML function SelectTools. When you change the BAML code for this function, the associated types for this react hook will automatically update.
    1. onStreamData is an optional parameter you can pass to the hook constructor. The callback will be invoked each time new stream data is available. For now, we will simply log the streamed data to the console.
    1. The hook.mutate() method is used to invoke the LLM Function.
    1. hook.streamData is a reactive value containing the most recently streamed data. By using using it in JSX we get a live view of its value.

Add this component to the site by deleting the contents of src/app/page.tsx and replacing it with this:

// src/app/page.tsx

import { TestLLM } from '@/components/test-llm';

export default function Home() {
  return (
    <TestLLM />
  );
}

If you are still running npm run dev, your page should behave like this:

At this point, depending on your familiarity with React, it might be clear how close we are to a working app! In fact, if your LLM function returns a value that corresponds directly to a rendered UI, then the patterns you have already seen are enough to render a streaming UI for your functions.

Agentic UI Updates

Our LLM function does not return a directly renderable UI element, but a list of tool calls that determine how we should update the UI.

To support this pattern, we will make a couple simplifying architectural decisions:

    1. Keep track of App state separately from the state we send to the LLM.
    1. Use jotai to manage App state.
    1. Execute UI updates in the onStreamData callback, by modifying the state stored in Jotai atoms.

Application State

Our application state will store the current Todo items, messages the user has sent, and messages the LLM has sent back. We will also store a field that tracks whether or not we are currently waiting for an LLM to respond.

First, add jotai to the project:

npm add jotai@latest

Copy the following into src/lib/atoms.ts:

import { atom } from 'jotai';
import { atomWithStorage } from 'jotai/utils';
import type { State } from '../../baml_client';

// Our App state is a combination of our BAML `State` type and two extra
// fields: `running` and `messages`.
const stateAtom = atomWithStorage<
  State & { running: boolean; messages: string[] }
>('todoState', {
  todo_list: { items: [] },
  running: false,
  messages: [],
});

export { stateAtom };

This code initialize a new atom to store our UI's state. Any other component in the application can import this atom to get a read-only, or read-write view, depending on that component's needs. We plan to read from the atom while rendering components, and write to it while handling LLM responses.

Let's start with a top-level component that will organize the rest of the site. Create the file src/components/todo-app.tsx.

'use client';

import { MessagesToUser } from '@/components/message-list';
import { TodoList } from '@/components/todo-list';
import { stateAtom } from '@/lib/atoms';
import { useSetAtom } from 'jotai';
import { useTodoToolHandler } from './tool-handler';

// Top-level Component for the Todo App.
export function TodoInterface() {

  // We will define `useTodoToolHandler later. For now, we assume it returns
  // pair of callbacks that should be called when a user sends a query or
  // clicks a Todo checkbox.
  const { onUserQuery, onCheckboxClick } = useTodoToolHandler();

  // Get a handle on the `stateAtom`, which allows modifying the App state.
  const setState = useSetAtom(stateAtom);

  // Define a callback for resetting the App state.
  const handleReset = () => {
    setState({
      todo_list: { items: [] },
      running: false,
      messages: [],
    });
  };

  // The HTML elements mostly organize the page with flex boxes.
  return (
    <div className="container mx-auto max-w-4xl p-5">
      <div className="flex flex-col w-full">
        <div className="w-full flex flex-row justify-center items-center gap-4 mb-6">
          <h1 className="text-4xl">
            TODO-LLM
          </h1>
        </div>

        <div className="flex  gap-4 max-w-3xl mx-auto w-full">
            {* Pass the callabcks through to the logical components. *}
            <TodoList onCheckboxClick={onCheckboxClick} onRun={onUserQuery} onReset={handleReset} />
        </div>
      </div>
    </div>
  );
}

An error will tell you TodoList and useTodoToolHandler are not defined. We will implement these now.

Let's first look at the useTodoToolHandler callback. This function provides the two callbacks that connect the LLM's tool calls to our UI state.

This is the most complex part of our application. Take your time, focus on the code comments, and experiment in your editor. We can do it!

Create the file src/components/tool-handler.tsx with the following contents:

'use client';

import { stateAtom } from '@/lib/atoms';
import { useAtom } from 'jotai';
import { useCallback, useRef } from 'react';
import type { partial_types } from '../../baml_client/partial_types';
import { useSelectTools } from '../../baml_client/react/hooks';
import type * as types from '../../baml_client/types';

// Helper functions for tool handling.

// Helper function for creating a new Todo item.
const createTodoItem = (title: string, tags: string[] = []): types.TodoItem => {
  // The creation timestamp is in seconds, and Date.now()
  const timestamp = Math.floor(Date.now() / 1000);
  const randomStr = Math.random().toString(36).substring(2, 15);
  const cuid2 = `c${randomStr}${Math.random().toString(36).substring(2, 12)}`.slice(0, 25);
  return {
    id: cuid2,
    title,
    tags,
    created_at: timestamp,
    completed_at: null,
    deleted: false,
  };
};

// Apply updates to a TodoItem, returning the new one.
const updateTodoItem = (
  item: types.TodoItem,
  updates: Partial<types.TodoItem>,
): types.TodoItem => ({
  ...item,
  ...updates,
  tags: updates.tags ?? item.tags,
});

// *************** The main tool handler *********************** //
// This is the function that sets up the hook and dispatches to
// helpers that implement each tool.
export function useTodoToolHandler() {
  const [state, setState] = useAtom(stateAtom);
  const finishedInstructionsRef = useRef(new Set<number>());

  // Helper function for update the state with a new Todo item.
  const handleAddItem = useCallback(
    (tool: types.AddItem) => {
      setState((prevState) => ({
        ...prevState,
        todo_list: {
          ...prevState.todo_list,
          items: [
            ...prevState.todo_list.items,
            createTodoItem(tool.title, tool.tags),
          ],
        },
      }));
    },
    [setState],
  );

  // Helper function for update the state for item adjustment.
  const handleAdjustItem = useCallback(
    (tool: types.AdjustItem) => {
      setState((prevState) => ({
        ...prevState,
        todo_list: {
          ...prevState.todo_list,
          items: prevState.todo_list.items.map((item) =>
            item.id === tool.item_id
              ? updateTodoItem(item, {
                  title: tool.title ?? undefined,
                  completed_at: tool.completed_at ?? undefined,
                  deleted: tool.deleted ?? undefined,
                  tags: tool.tags ?? undefined,
                })
              : item,
          ),
        },
      }));
    },
    [setState],
  );

  // Helper function for streaming a message.
  const handleMessageToUser = useCallback(
    (tool: partial_types.MessageToUser) => {
      setState((prevState) => ({
        ...prevState,
        messages: prevState.messages.map((msg, idx) =>
          idx === prevState.messages.length - 1 ? tool.message.value : msg,
        ),
      }));

      if (tool.message.state === 'Complete') {
        setState((prevState) => ({
          ...prevState,
          messages: [...prevState.messages, ''],
        }));
      }
    },
    [setState],
  );

  // Invoke the generated hook from the `SelectTools` BAML function.
  const hook = useSelectTools({
    stream: true,

    // When the stream is finished after an invokation:
    //   - Reset the hook.
    //   - Reset the list of already-processed tool-calls.
    //   - Update `running` state to `false`.
    onFinalData: () => {
      hook.reset();
      finishedInstructionsRef.current = new Set<number>();
      setState((prevState) => ({
        ...prevState,
        running: false,
      }));
    },

    // When a stream chunk is received:
    //   - Focus on the last call in the list. Any item other than
    //     the last item is already completely handled.
    onStreamData: (chunk) => {
      if (!chunk?.length) return;

      const tool_id = chunk.length - 1;
      const tool = chunk[tool_id];

      if (finishedInstructionsRef.current.has(tool_id)) return;

      // Dispatch to the right handler for the tool.
      switch (tool?.type) {
        case 'add_item':
          handleAddItem(tool as types.AddItem);
          finishedInstructionsRef.current.add(tool_id);
          break;
        case 'adjust_item':
          handleAdjustItem(tool as types.AdjustItem);
          finishedInstructionsRef.current.add(tool_id);
          break;
        case 'message_to_user':
          handleMessageToUser(tool as partial_types.MessageToUser);
          if (
            (tool as partial_types.MessageToUser).message.state === 'Complete'
          ) {
            finishedInstructionsRef.current.add(tool_id);
          }
          break;
      }
    },
  });

  // This callback will be called when the user submits a query.
  // On query, we:
  //   - Set `running` to `true`
  //   - Push an empty string to the `messages` list. If we encounter
  //     a `message_to_user` call, it will populate that empty string.
  //   - call `hook.mutate()` to call the LLM.
  //   - We don't need to handle the stream here. Streaming is handled
  //     by the `onStreamData` callback that we set when building the hook.
  const onUserQuery = useCallback(
    async (message: string) => {
      setState((prevState) => ({
        ...prevState,
        running: true,
        messages: [...prevState.messages, message, ''],
      }));

      hook.mutate(state, {
        message,
        date_time: Math.floor(Date.now() / 1000),
      });
    },
    [hook, state, setState],
  );

  // This callback is called when the user clicks the checkmark on a todo item.
  const onCheckboxClick = useCallback(
    async (item_id: string) => {
      setState((prevState) => ({
        ...prevState,
        todo_list: {
          ...prevState.todo_list,
          items: prevState.todo_list.items.map((item) =>
            item.id === item_id
              ? updateTodoItem(item, {
                  completed_at: item.completed_at
                    ? null
                    : Math.floor(Date.now() / 1000),
                })
              : item,
          ),
        },
      }));
    },
    [setState],
  );

  return {
    onUserQuery,
    onCheckboxClick,
  };
}

There is a lot going on in this file, let's break it down.

  • The on_user_query callback calls hook.mutate() with the message from the query Input element, and the current time.
  • on_user_query also pushes a new, empty message onto the messages state. This empty message will receive any characters received from the message_to_user tool call, if that tool is called.
  • The useSelectTools callback is created with a onStreamData handler. The callback passed to onStreamData selects the last tool in the list. The streamed value received by onStreamData is always a list of tool calls. If the list is longer than 1, that means we alrealy saw the previous list item in a previous stream chunk. We therefore only have to exampine the last tool call in our list.
  • We call switch (tool?.type) to determine the precise tool call being processed, and then defer to one of the handler functions. We also add the index of this tool call to finishedInstructionsRef, if the tool call was marked @stream.done. @stream.done tool calls are received in a single chunk, and therefore we know they are done as soon as we process them for the first time.
  • We do not always add message_to_user tool calls to finishedInstructionsRef, because a subsequent stream message might extend this tool call with further tokens. (Recall that this tool was not marked @stream.done in our BAML code). We use the wrapping state tracker that comes from BAML's @stream.with_state attribute to deterimine whether message_to_user tool call is complete.
  • Special-purpose handlers for the add_item and adjust_item tools update our UI state.
  • An onCheckboxClick callback updates the state of any Todo item that has been manually clicked.

Todo List UI

With our state update callbacks in hand, we can finish building the user interface for the todo-list.

Create the file src/components/todo-list.tsx. This component will render a dialog box showing us the current app state, which can be useful for debugging.

import { Checkbox } from "@/components/ui/checkbox";
import { stateAtom } from "@/lib/atoms";
import { useAtom } from "jotai";
import type * as types from "../../baml_client/types";
import { Badge } from "./ui/badge";
import { Label } from "./ui/label";
import { useState } from "react";
import { Button } from "./ui/button";
import { Input } from "./ui/input";
import { MessagesToUser } from "./message-list";

// This is the main component for the interactive parts of the Todo list.
//   - The query input field and run button
//   - The Todo list
//   - The messages to the user
export function TodoList(props: {
  onCheckboxClick: (item_id: string) => void;
  onRun: (message: string) => void;
  onReset: () => void;
}) {

  // Access the UI state in read-only mode.
  const [state] = useAtom(stateAtom);

  // A standard `useState` for the Query input.
  const [message, setMessage] = useState("");

  return (
    <div className="flex flex-col w-full max-w-2xl mx-auto">
      <div className="flex flex-col items-center gap-2 mb-4 w-full">
        <div className="flex w-full gap-2">

          {* The Input uses the tool-handling `onRun` handler on submit. *}
          <Input
            value={message}
            className="text-xl"
            placeholder="What needs to be done?"
            onChange={(e) => setMessage(e.target.value)}
            onKeyDown={(e) => {
              if (e.key === "Enter") {
                props.onRun(message);
                setMessage("");
              }
            }}
          />

          <Button
            disabled={state.running}
            variant="default"
            onClick={() => {
              props.onRun(message);
              setMessage("");
            }}
          >
            {state.running ? "Pending..." : "Send"}
          </Button>

          {* A button to reset the state *}
          <Button variant="outline"  onClick={props.onReset}>
            Reset
          </Button>
        </div>
      </div>

      <div className="flex gap-4">
        <div className="w-1/2 border border-border rounded-lg shadow-sm p-4">

          {* Render each Todo item, with the onCheckboxClick callback *}
          {state.todo_list.items.map((item, index) => (
            <TodoItem key={`message-${index}`} item={item} onCheckboxClick={props.onCheckboxClick} />
          ))}

          <div className="text-sm text-muted-foreground mt-4">
            {state.todo_list.items.filter((item) => !item.completed_at).length}{" "}
            items left!
          </div>

        </div>
        <div className="w-1/2">
          {* Render the messages to the user *}
          <MessagesToUser />
        </div>
      </div>
    </div>
  );
}

// Component for a single Todo list item.
export function TodoItem(props: {
  item: types.TodoItem;
  onCheckboxClick: (item_id: string) => void;
}) {
  const isCompleted = props.item.completed_at != null;

  return (
    <div
      className="flex justify-between gap-3 py-2 border-b border-border last:border-b-0"
    >
      <div className="flex flex-col gap-2">
        <div className="flex items-center gap-2">
          <Checkbox
            checked={isCompleted}
            id={`todo-${props.item.id}`}
            onCheckedChange={() => props.onCheckboxClick(props.item.id)}
            className="h-5 w-5"
          />
          <Label
            htmlFor={`todo-${props.item.id}`}
            className={`flex-1 ${
              isCompleted ? "text-muted-foreground line-through" : ""
            }`}
          >
            {props.item.title}
          </Label>
        </div>
        <span className="text-xs text-muted-foreground">
          {props.item.completed_at
            ? `Completed ${new Date(props.item.completed_at * 1000).toLocaleString()}`
            : "Not completed"}
        </span>
      </div>
      <div className="flex items-center gap-2">
        {props.item.tags.map((tag) => (
          <Badge key={tag} variant="outline">
            {tag}
          </Badge>
        ))}
      </div>
    </div>
  );
}

We'll add a simple component to render messages to the user, in src/components/message-list.tsx:

import { stateAtom } from '@/lib/atoms';
import { useAtom } from 'jotai';

function MessagesToUser() {
  const [state] = useAtom(stateAtom);
  console.log('Current state:', state);

  return (
    <div className="w-full flex flex-col gap-2">
        {state.messages
          .filter((message) => message !== '')
          .map((message, index, arr) => (
            <div
              className={`p-3 rounded-lg ${
                index === arr.length - 1
                  ? 'bg-primary/10 border-l-2 border-primary'
                  : 'bg-muted/50'
              }`}
              key={`message-${index}-${message.slice(0, 10)}`}
            >
              <p className="text-sm text-foreground">{message}</p>
            </div>
          ))}
    </div>
  );
}

export { MessagesToUser };

Finally, we will add the TodoInterface to our main page, in src/app/page.tsx:

import { TodoInterface } from '@/components/todo-app';

export default function Home() {
  return (
    <TodoInterface />
  );
}
checkpoint

At this point, we have defined all the components needed to run the full app. Does your browser show you a nice UI at localhost:3000? Try sending some queries to the LLM, and watch items and messages populate.

One of my favorite queries is this: "Create several todo items to help me get great at chess - explain each item after you creat it."

This will produce a number of Todo items interleaved with streaming messages. This is a pattern of combined streaming and atomic tool calls that is difficult to replicate in other agentic frameworks!

Reflecting on the App

With 140 lines of BAML and 430 lines of TypeScript code, we've created an agentic web app that blends a streaming chatbot with a structured domain model. We achieved exactly the streaming behavior we wanted, using BAML's streaming annotations, and it is clear how we could extend the application with different types of frontend elements or updates to the prompt.

If you have made it this far in the blog post, :clap:, this one was very long and did not try to hide the complexity of the end-to-end development process. Please let us know if this format was useful to you, or if you prefer shorter and more focused tutorials.

Next time

In the next installment, we will make our tool calls more interesting in two ways.

  1. The tool calls in this demo just update the UI, they don't have explicit return values, other than their effect on the UI state that gets passed back to the LLM. We will add tools that get current real-world data to inform our new Todo items.
  2. We will augment the Todo list state into a vector database and add tool calls that find Todos from the database by semantic similarity.

Takeaways

Thank you for taking the time to learn about integrating BAML into a React app! If you remember anything from the experience, we hope it's this: BAML makes it easy to build and test the LLM parts of your app, then call your LLM Function from React just like it was any other hook, with the reactive data and type safety you would expect.

Thanks for reading!
